What kind of speed can the linear guide system make the machine tool obtain? Linear guideway is generally an accessory we use on the machine tool, but it plays a very important role in the machine tool. Dongguan Gangsheng Machinery Accessories Co., Ltd. is a professional manufacturer of linear guideway. Next, we will study the speed of linear guideway system to the machine tool?

直线导轨系统是 一种滚动导引，是由钢珠在滑块跟导轨之间无限滚动循环， 从而使负载平台沿着导轨轻易的高精度线性运动，并将摩擦系数降平常传统滑动导引的五十分之一，能轻易地达到很高的定位精度。滑块跟导轨间末制单元设计，使线形导轨同时承受上下左右等各方向的负荷，的回流系统及精简化的结构设计让HIWIN的线性导轨有更平顺且低噪音的运动！

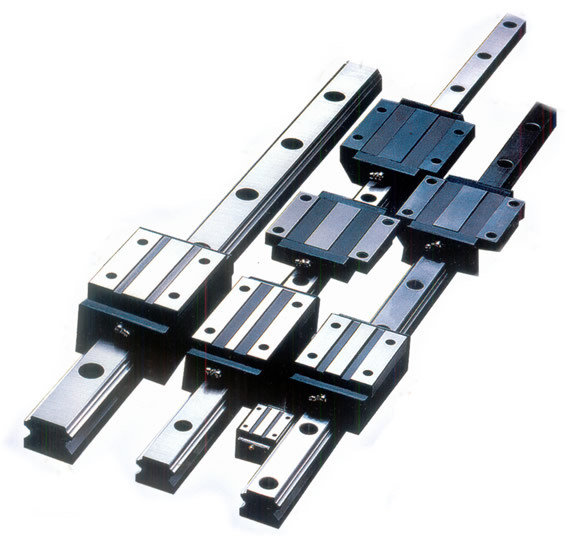

Linear guideway system is a kind of rolling guide, which is made of steel balls rolling and cycling between the slider and the guideway infinitely, so that the load platform moves along the guideway with high precision and linearity easily, and the friction coefficient is reduced to one fiftieth of the normal traditional sliding guide, so that the high positioning accuracy can be easily achieved. The final unit design between slider and guide rail makes the linear guide rail bear the load of up, down, left, right and other directions at the same time. The patented return system and refined and simplified structure design make the linear guide rail of HIWIN move more smoothly and with low noise!

直线导轨系统使机床可获得快速进给速度，在主轴转速相同的情况下，快速进给是直线导轨的特点。直线导轨与平面导轨一样，有两个基本元件；一个作为导向的为固定元件，另一个是移动元件。由于直线导轨是标准部件，对机床制造厂来说．要做的只是加工一个安装导轨的平面和校调导轨的平行度。当然，为了保证机床的精度，床身或立柱少量的刮研是必不可少的，在多数情况下，安装是比较简单的。作为导向的导轨为淬硬钢，经精磨后置于安装平面上。与平面导轨比较，直线导轨横截面的几何形状，比平面导轨复杂，复杂的原因是因为导轨上需要加工出沟槽，以利于滑动元件的移动，沟槽的形状和数量，取决于机床要完成的功能。

The linear guide system enables the machine tool to obtain the rapid feed speed. Under the same spindle speed, the rapid feed is the characteristic of the linear guide. Like the plane guide, the linear guide has two basic elements: one is the fixed element as the guide, the other is the moving element. As the linear guide rail is a standard part, for the machine tool manufacturer, the only thing to do is to process a plane to install the guide rail and adjust the parallelism of the guide rail. Of course, in order to ensure the accuracy of the machine tool, a small amount of scraping and grinding of the bed or column is essential, and in most cases, the installation is relatively simple. The guide rail as a guide is made of hardened steel, which is placed on the installation plane after finishing grinding. Compared with the plane guide rail, the geometry of the cross section of the linear guide rail is more complex than that of the plane guide rail. The reason for the complexity is that the guide rail needs to be processed with grooves to facilitate the movement of the sliding elements. The shape and number of grooves depend on the functions to be completed by the machine tool.
