thk导轨丝杠的产品特点介绍

来源:http://www.jngongrun.com/ 日期:2023-12-07 发布人:

thk导轨丝杠是工具机械和精密机械上很常使用的传动元件,其主要功能是将旋转运动转换成线性运动,或将扭矩转换成轴向反复作用力,同时兼具高精度、可逆性和率的特点。由于具有很小的摩擦阻力,thk导轨丝杠被广泛应用于各种工业设备和精密仪器。

THK guide screw is a commonly used transmission component in tool machinery and precision machinery. Its main function is to convert rotary motion into linear motion or torque into axial repeated force, while also possessing the characteristics of high precision, reversibility, and high efficiency. Due to its small frictional resistance, THK guide screws are widely used in various industrial equipment and precision instruments.

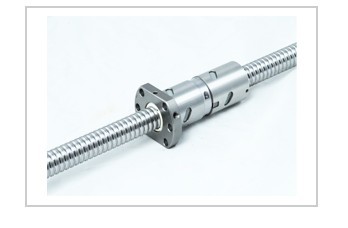

滚珠丝杆由螺杆、螺母、钢球、预压片、反向器、防尘器组成。它的功能是将旋转运动转化成直线运动,这是艾克姆螺杆的进一步延伸和发展,这项发展的重要意义就是将轴承从滑动动作变成滚动动作。

The ball screw is composed of a screw, nut, steel ball, pre press plate, reverser, and dust collector. Its function is to convert rotational motion into linear motion, which is a further extension and development of the Aikem screw. The important significance of this development is to transform bearings from sliding motion to rolling motion.

滚珠螺杆特点1、摩擦损失小、传动效率高。

Features of ball screw: 1. Low friction loss and high transmission efficiency.

由于滚珠丝杆副的丝杠轴与丝杠螺母之间有很多滚珠在做滚动运动,所以能得到较高的运动效率。与过去的滑动丝杆副相比驱动力矩达到1/3以下,即达到同样运动结果所需的动力为使用滑动阿丝杠副的1/3。在省电方面很有帮助。


Due to the rolling motion of many balls between the screw shaft and the screw nut of the ball screw pair, high motion efficiency can be achieved. Compared with previous sliding screw pairs, the driving torque reaches less than 1/3, which means that the power required to achieve the same motion result is 1/3 of that required by using a sliding screw pair. It is very helpful in saving electricity.

2、精度高

2. High precision

滚珠丝杆副一般是用世界很高水平的机械设备连贯生产出来的,特别是在研削、组装、检查各工序的工厂环境方面,对温度、湿度进行了严格的控制,由于完善的品质管理体制使精度得以充分保证。

Ball screw pairs are generally produced using world-class mechanical equipment, especially in the factory environment of grinding, assembly, and inspection. Temperature and humidity are strictly controlled, and the precision is fully guaranteed due to a sound quality management system.

3、高速进给和微进给可能

3. High speed feed and micro feed may

滚珠丝杆副由于是利用滚珠运动,所以启动力矩极小,不会出现滑动运动那样的爬行现象,能保证实现精确的微进给。

The ball screw pair utilizes ball motion, so the starting torque is extremely small and there will be no crawling like sliding motion, ensuring accurate micro feed.

4、轴向刚度高

4. High axial stiffness

滚珠丝杆副可以加与预压,由于预压力可使轴向间隙达到负值,进而得到较高的刚性(滚珠丝杠内通过给滚珠加予压力,在实际用于机械装置等时,由于滚珠的斥力可使丝母部的刚性增强)。

The ball screw pair can be pre pressed, as the pre pressure can cause the axial clearance to reach a negative value, thereby obtaining higher rigidity (by applying pressure to the ball in the ball screw, when used in mechanical devices, the repulsive force of the ball can enhance the rigidity of the threaded part).

5、不能自锁、具有传动的可逆性

5. Cannot self lock and has reversible transmission

滚珠螺杆应用:超高DN值滚珠丝杠:高速工具机,高速综合加工中心机

Ball screw application: ultra-high DN value ball screw: high-speed tool machine, high-speed comprehensive machining center machine

端盖式滚珠丝杠:快速搬运系统,一般产业机械,自动化机械

End cap ball screw: fast handling system, general industrial machinery, automation machinery

高速化滚珠丝杠:CNC机械、精密工具机、产业机械、电子机械、高速化机械

High speed ball screw: CNC machinery, precision tool machines, industrial machinery, electronic machinery, and high-speed machinery

精密研磨级滚珠丝杠:CNC机械,精密工具机,产业机械,电子机械,输送机械,航天工业,其它天线使用的致动器、阀门开关装置等。

Precision grinding grade ball screw: CNC machinery, precision tool machines, industrial machinery, electronic machinery, conveyor machinery, aerospace industry, actuators, valve switch devices used in other antennas, etc.

螺帽旋转式系列滚珠丝杠:半导体机械、产业用机器人、木工机、雷射加工机、搬送装置等

Nut rotating series ball screw: semiconductor machinery, industrial robots, woodworking machines, laser processing machines, conveying devices, etc

轧制级滚珠丝杠:低摩擦、运转顺畅的优点,同时供货迅速且低廉重负荷滚珠丝杠:全电式射出成形机、冲压机、半导体制造装置、重负荷制动器、产业机械、锻压机械。

Rolling grade ball screw: With the advantages of low friction and smooth operation, as well as fast supply and low price, heavy-duty ball screw: all electric injection molding machines, stamping machines, semiconductor manufacturing devices, heavy-duty brakes, industrial machinery, forging machinery.

更多的关于导轨丝杠问题或者详细的内容,请进入我们公司的网站:http://www.jngongrun.com网站中会有很多的内容仅供参考

For more information or detailed information about guide screw issues, please visit our company's website: http://www.jngongrun.com There will be a lot of content on the website for reference only
