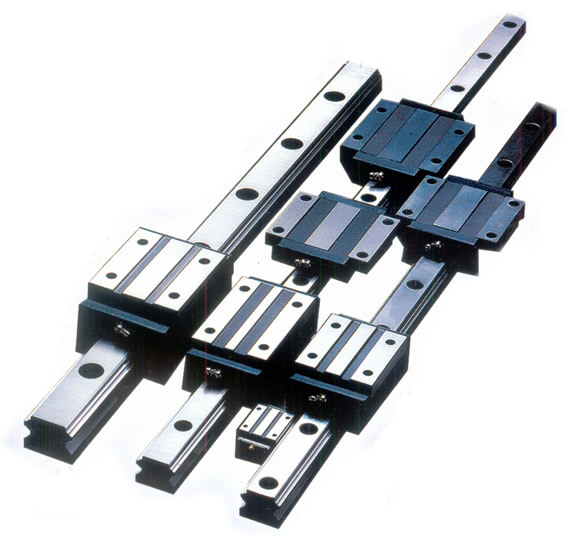

导轨滑块又称线轨、滑轨、直线导轨、直线滑轨，用于直线往复运动，能承受一定的扭矩，能在高载荷下实现高精度的直线运动，今天导轨丝杠厂家来给大家分享一下导轨滑块的特点和功能作用，希望对你有帮助。

The guide rail slider, also known as a line rail, slide rail, linear guide rail, or linear slide rail, is used for linear reciprocating motion. It can withstand a certain amount of torque and achieve high-precision linear motion under high loads. Today, the guide rail screw manufacturer will share with you the characteristics and functional functions of the guide rail slider, hoping to be helpful to you.

导轨滑块特点：

Characteristics of guide rail slider:

1.导轨滑块拥有高负荷、高扭矩功能，采用双排滚珠循环设计，滚珠轨道采用歌德结构，其接触角为45度，从而达到四个方向载荷相等的效果。

1. The guide rail slider has high load and torque functions, and adopts a double row ball circulation design. The ball track adopts a Goethe structure with a contact angle of 45 degrees, achieving equal load in all four directions.

2.嵌入式设计：导轨滑块刚体与框架、端盖、密封件的结合采用嵌入式设计，无需螺丝固定，节省设计空间。

2. Embedded design: The combination of the rigid body of the guide rail slider with the frame, end cover, and sealing elements adopts an embedded design, without the need for screw fixation, saving design space.

3.润滑简单：导轨滑块两端设计有密封的润滑油注入孔，可以通过钢球的循环将润滑油带到表面，达到润滑效果，防尘设计良好，薄底封和端封形成全密封防尘设计，大大减少了污染的进入。

3. Simple lubrication: The guide rail slider is designed with sealed lubricating oil injection holes at both ends, which can bring lubricating oil to the surface through the circulation of steel balls to achieve lubrication effect. The dust prevention design is good, and the thin bottom seal and end seal form a fully sealed dust prevention design, greatly reducing the entry of pollution.

4.它的使用寿命长，导轨滑块是用不锈钢硬化热处理材料，大大提高了使用寿命。

4. Its service life is long, and the guide rail slider is made of stainless steel hardened heat treated material, greatly improving its service life.

导轨滑块的功能作用：

The functional role of the guide rail slider:

1.工作精度高：由于直线导轨在运动时摩擦非常小，只需很小的功率就能使机器运动，显著降低了机器的功耗，摩擦产生的热量非常小，它是一个适合高速、频繁启动和换向的运动部件。

1. High working accuracy: Due to the very small friction of the linear guide rail during movement, it only requires a small amount of power to make the machine move, significantly reducing the power consumption of the machine. The heat generated by friction is very small, making it a suitable moving component for high-speed, frequent starting and reversing.

2.润滑结构简单：直线导轨在滑块上配有注油杯，可以直接注入油脂，也可以连接供油管由自动供油机润滑，使其磨损减少到小，机器可以长期保持良好的工作状态。

2. Simple lubrication structure: The linear guide rail is equipped with an oil cup on the slider, which can directly inject grease or connect the oil supply pipe to be lubricated by an automatic oil supply machine, reducing its wear to a minimum. The machine can maintain good working conditions for a long time.

3.防尘密封能力强：直线导轨防尘性能好。滑块两端有密封端盖，底部可以用底片密封。同时，滑轨的固定螺孔配有防尘螺孔盖，防止灰尘堆积，保证了产品的寿命和性能。

3. Strong dustproof sealing ability: The linear guide rail has good dustproof performance. The slider has sealed end covers at both ends, and the bottom can be sealed with a negative film. At the same time, the fixed screw holes of the slide rail are equipped with dustproof screw hole covers to prevent dust accumulation and ensure the product's lifespan and performance.

4.安装更换方便：由于采用精密加工技术，滑轨直线度高，滑轨安装螺孔误差小，安装方便，导轨滑块是可以互换的，可以分别更换滑块或滑块甚直线导轨，使机器重新达到高精度。

4. Convenient installation and replacement: Due to the use of precision machining technology, the straightness of the slide rail is high, and the screw hole error during the installation of the slide rail is small, making it easy to install. The guide rail slider can be interchanged, and the slider or even the linear guide rail can be replaced separately, so that the machine can achieve high accuracy again.

导轨滑块具有有限行程和耐高温、高负荷、高扭矩功能，无论是滑轨、滑座的钢体还是滚珠都是经过硬化热处理的不锈钢制成，适用于低冲程、低摩擦、高速运动、真空操作、耐腐蚀、耐酸等。您对此有需求可以随时联系我们http://www.jngongrun.com做咨询！

The guide rail slider has limited travel, high temperature resistance, high load, and high torque functions. Whether it is the steel body of the slide rail, slide seat, or the ball, it is made of hardened heat treated stainless steel, suitable for low stroke, low friction, high-speed movement, vacuum operation, corrosion resistance, acid resistance, etc. If you have any needs, please feel free to contact us at any time http://www.jngongrun.com Consulting!
